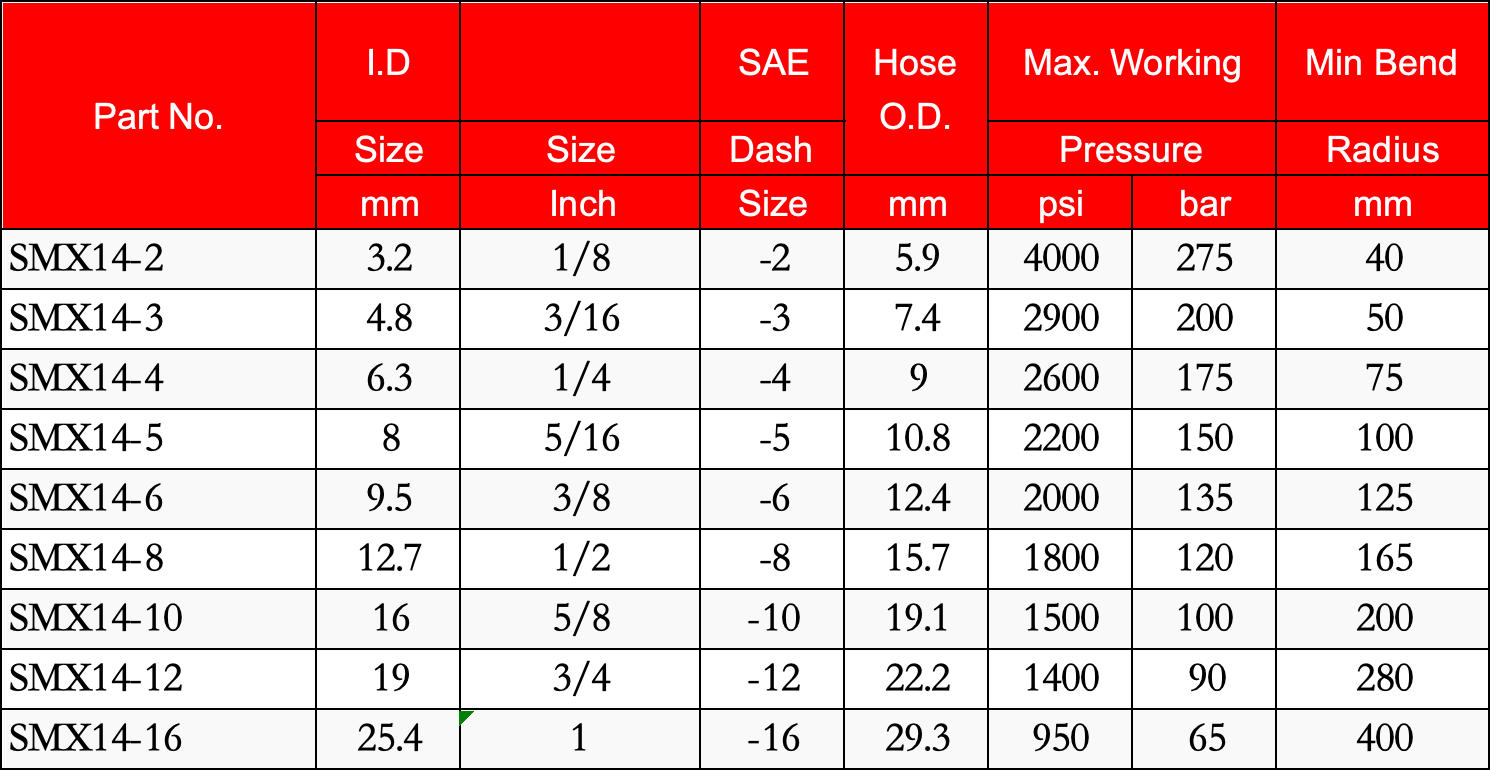

SAE 100R14 PTFE Hose

PTFE Hose assemblies is a special process dealing with PTFE inner tube

Stainless steel wire and the ends coat enhanced layer composed of metal connectors.

PTFE Hose assemblies, a notable feature is the anti-aging resistance, chemical corrosion, high and low temperature resistance, light weight (relative to the same working pressure of the rubber hose) can be used as liquid and gas transmission pipe system media. Apply to aviation, aerospace aircraft hydraulic, servo control, lubricating oil and fuel system, transmission tube

Inner Smooth Bore Hose

Construction:

Tube: 100% PTFE resin

Cover: single or double AISI 304 or 316 stainless steel wire outer braid

Application:

Design being used in automotive, fluid handling, chemical transfer, paint,pharmaceutical, food & beverage processing, cosmetics and general-purpose applications.

Inner Convoluted Hose

Construction:

Tube: 100% PTFE resin

Cover:single or double AISI 304 or 316 stainless steel wire outer braid

Application:

It features excellent flexibility and kink resistance for superior performance in chemical transfer, high temperature hydraulics, and hose applications requiring tight routings, high temperature media transfer and general-purpose applications.
